Ranger R745 Tire Changer

Only 1 left
P/N: 5140148
Ranger R745 Tire Changer
Ranger R745 Tire Changer
$3,039.75

⦿  30 days returns. Buyer pays for return shipping. See details

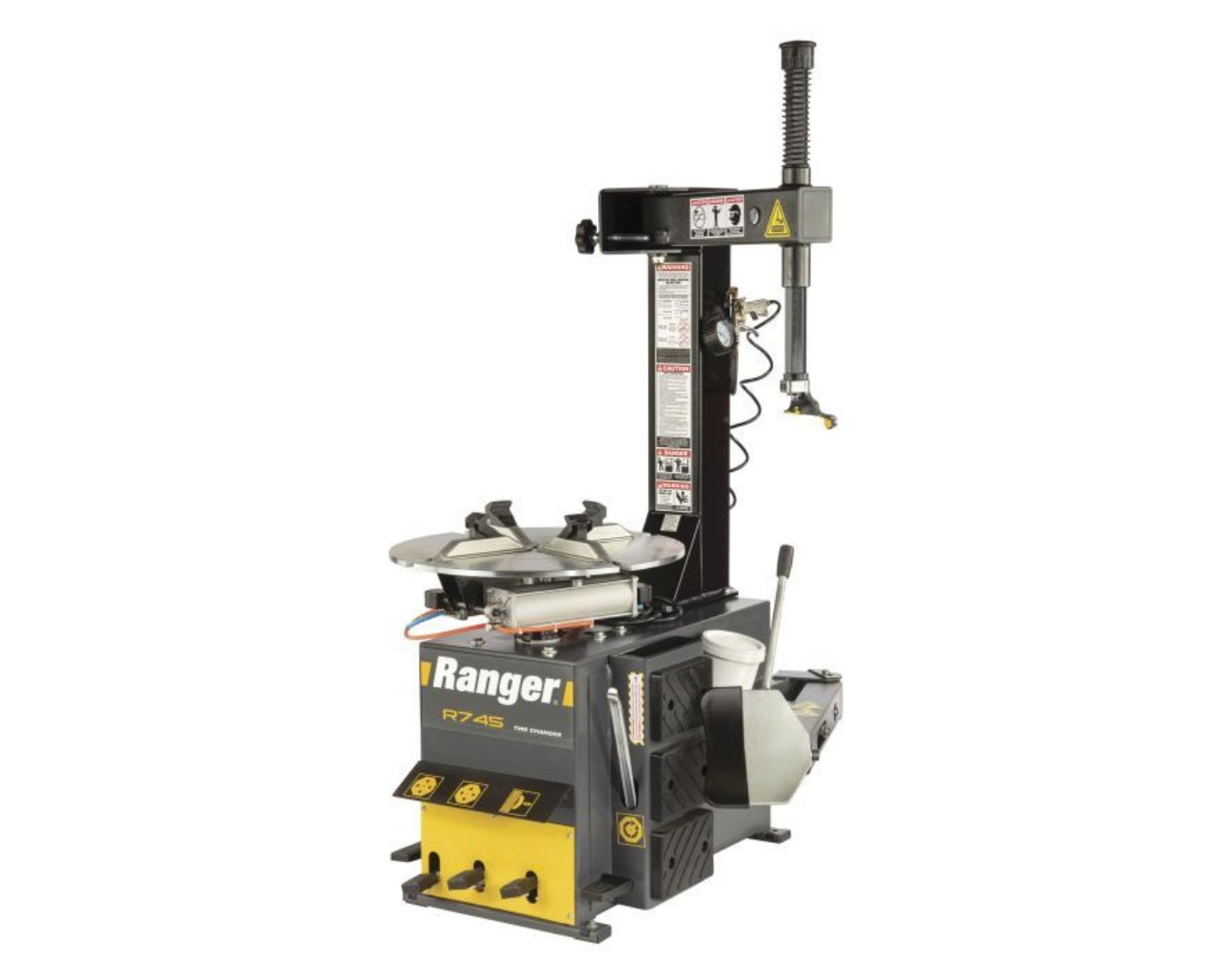

Ranger R745 Tire Changer

The Ranger R745 is an entry-level tire changer built for fast and efficient wheel service on passenger, trailer, and spare tires. With a rugged swing-arm design, high-torque electric turntable, and durable steel construction, it delivers professional results with minimal maintenance. Engineered for reliability and precision, this machine features enhanced bead breaking, sealed electrical components, and maintenance-free gearboxes, making it ideal for small shops, gas stations, and backup service units that demand performance without unnecessary complexity.

Key Features:

  • Type: Entry-level tire changer for passenger and trailer tires

  • Design: Swing-arm with rigid 45mm hexagonal vertical shaft and steel support arm

  • Drive System: High-torque electric turntable with reverse-direction control

  • Bead Breaker: Enhanced pneumatic blade with rubber bump stop for smooth operation

  • Foot Pedals: 100% forged steel—lightweight, durable, rust-resistant

  • Sealing: Airtight and dust-free internal electrical components

  • Pneumatic Tubing: High-pressure polyurethane for smooth, kink-resistant airflow

  • Drive Belt: Specially engineered convex sidewalls for longer belt life

  • Gearbox: Maintenance-free oil and grease tank with heat-dissipating design

  • Controls: Upfront and logically arranged for easy access

  • Cylinders: Aluminum and stainless steel with internal end-of-stroke cushions

  • Mount/Demount Head: Hardened alloy steel, micro-smooth surface for tire protection

  • Tool Shaft: 45mm spring-assisted hexagonal vertical shaft with non-flex arm

  • Tire Inflator: Pistol-type with sure-grip clip-on valve chuck

  • Storage: Integrated tool tray and accessory storage compartments

  • Included Accessories:

    • Inflation gauge with air dump valve (pistol type)

    • Water filter

    • Oiler/lubricator

    • Air regulator

    • Breaker bar

    • Large soap/lubricator bucket with brush

    • Traveling drop-center hold-down device

    • Inflation restraint device

    • Tool tray/bin storage

  • Optional: Motorcycle turntable clamps for added versatility

Specifications:

  • Drive System Type: Electric / Air

  • Motor: 110 or 220 VAC, 50/60 Hz, 1 Ph

  • Air Requirement: 140 - 165 psi (9.6 - 11.4 BAR)

  • Wheel Clamping Method: 4 Clamps - Internal / External Clamping

  • Table Clamping System: Dual pneumatic cylinders

  • Bead Breaking System: Pneumatic Blade

  • Tool Holder: Manual Lock

  • Tower Design: Rigid Fixed / Swing Arm

  • A - Inside (Wheel) Clamping Range: 12" – 21" (305 mm - 533 mm)

  • B - Outside (Wheel) Clamping Range: 10" – 18" (254 mm - 457 mm)

  • Maximum Rim Width: 11" (279 mm)

  • Maximum Tire Diameter: 39" (914 mm)

  • Shipping Weight: 466 lbs. (211 kg)

  • Shipping Dimensions: 40'' x 50'' x 65'' (1,016 mm x 1,270 mm x 1,651 mm)

  • Recommended Footprint: 50" x 50" x 75" (1,270 mm x 1,270 mm x 1,905 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
