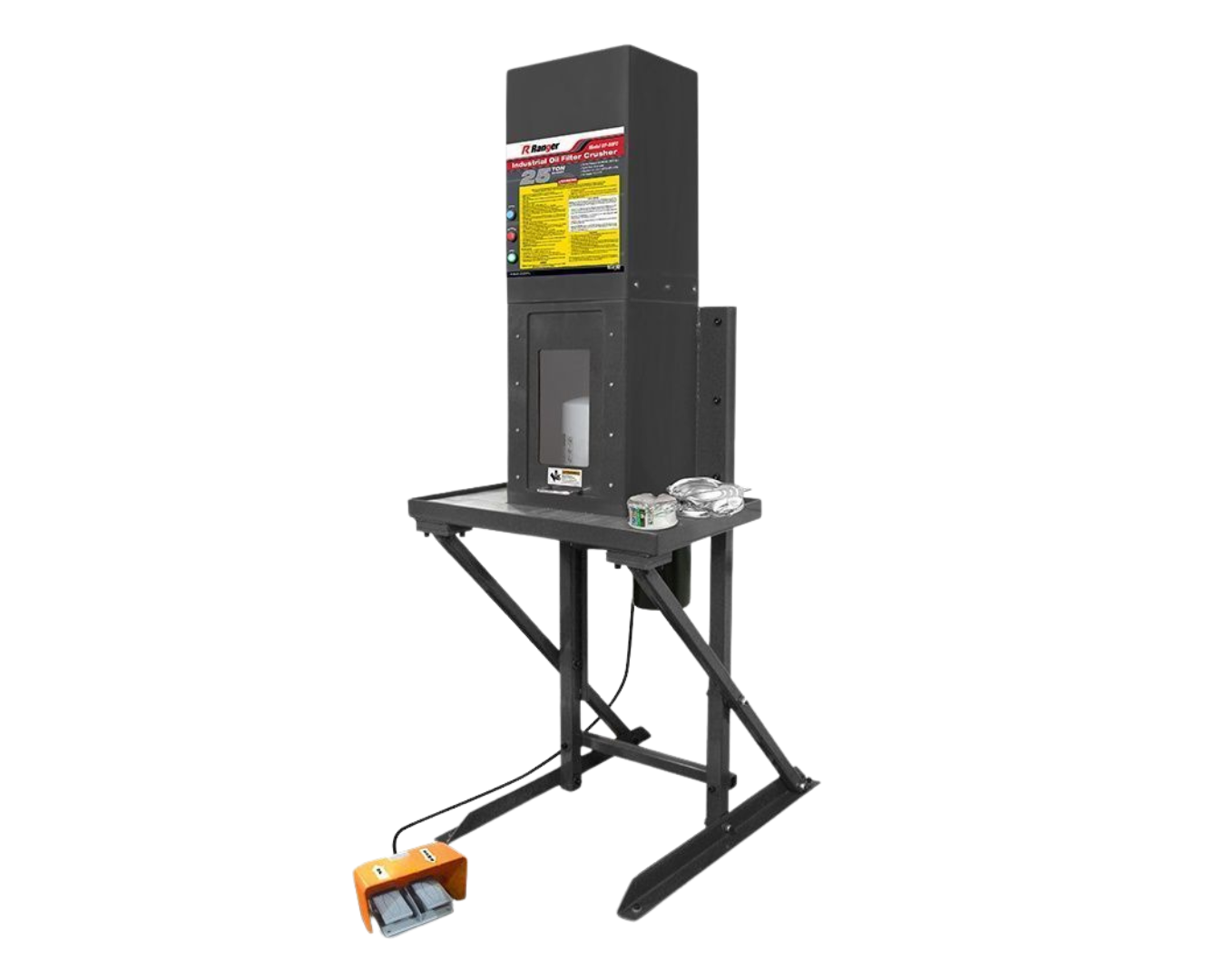

Ranger RP-50FC Hydraulic Oil Filter Crusher

The RP-50FC Electric/Hydraulic Oil Filter Crusher with Stand delivers 25 tons of crushing power, reducing used filters to just 20% of their original size and removing up to 95% of residual oil. It accommodates filters up to 15.25" long and 6" in diameter. With automatic cycle control and a 2-HP electric-hydraulic motor, it provides smooth and efficient operation. The built-in safety door, transparent viewing window, and remote foot switch ensure maximum safety and convenience, while its rugged floor stand supports up to 55-gallon drums for clean and efficient oil collection.

Features:

• Maximum crushing pressure: 50,000 lbs.

• Reduces filters to 20% of their original size with 95% oil removal

• Automatic cycle feature for easy operation

• Meets EPA and environmental standards

• Reduces waste disposal and storage costs

• Handles filters up to 15.25" long and 6" diameter

• Cycle time: 8–15 seconds (depending on filter size)

• Clean, no-mess design for spill-free operation

• Ergonomic controls for automatic or manual cycles

• Welded steel plate construction for durability

• Electric-hydraulic power unit with 2-HP motor

• Automatic safety door with transparent viewing window

• 2-gallon hydraulic reservoir

• Rugged floor stand accommodates up to 55-gallon drums

Specifications:

• Overall Height: 90.5" (2,299 mm)

• Overall Width: 32.5" (826 mm)

• Overall Depth: 31.5" (800 mm)

• Chamber Opening Height: 16" (406 mm)

• Chamber Opening Width: 9.8" (249 mm)

• Chamber Opening Depth: 11.5" (292 mm)

• Average Cycle Time: 8 – 15 sec

• Power Supply: 208-230VAC / 50/60 Hz / 1 Ph

• Shipping Weight: 718 lbs. (326 kg)

• Shipping Dimensions: 75" x 35" x 20" (1,905 mm x 889 mm x 508 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
