Capacity: 40,000 lbs. (18,144 kg)
-
Overall Height: 60.25" (1,530 mm)
-
Overall Width: 37" (940 mm)
-
Inside Width Between Rails: 24" (610 mm)
-
Adjustable Table Height: 7.5" - 36.25" (190 mm - 921 mm)
-
Base Dimensions: 27.25" x 26" (692 mm x 660 mm)
-
Cylinder Stroke: 5.5" (140 mm)
-
Shipping Weight: 274 lbs. (124 kg)
-
Shipping Dimensions: 61" x 13" x 15" (1,754 mm x 330 mm x 381 mm)
;

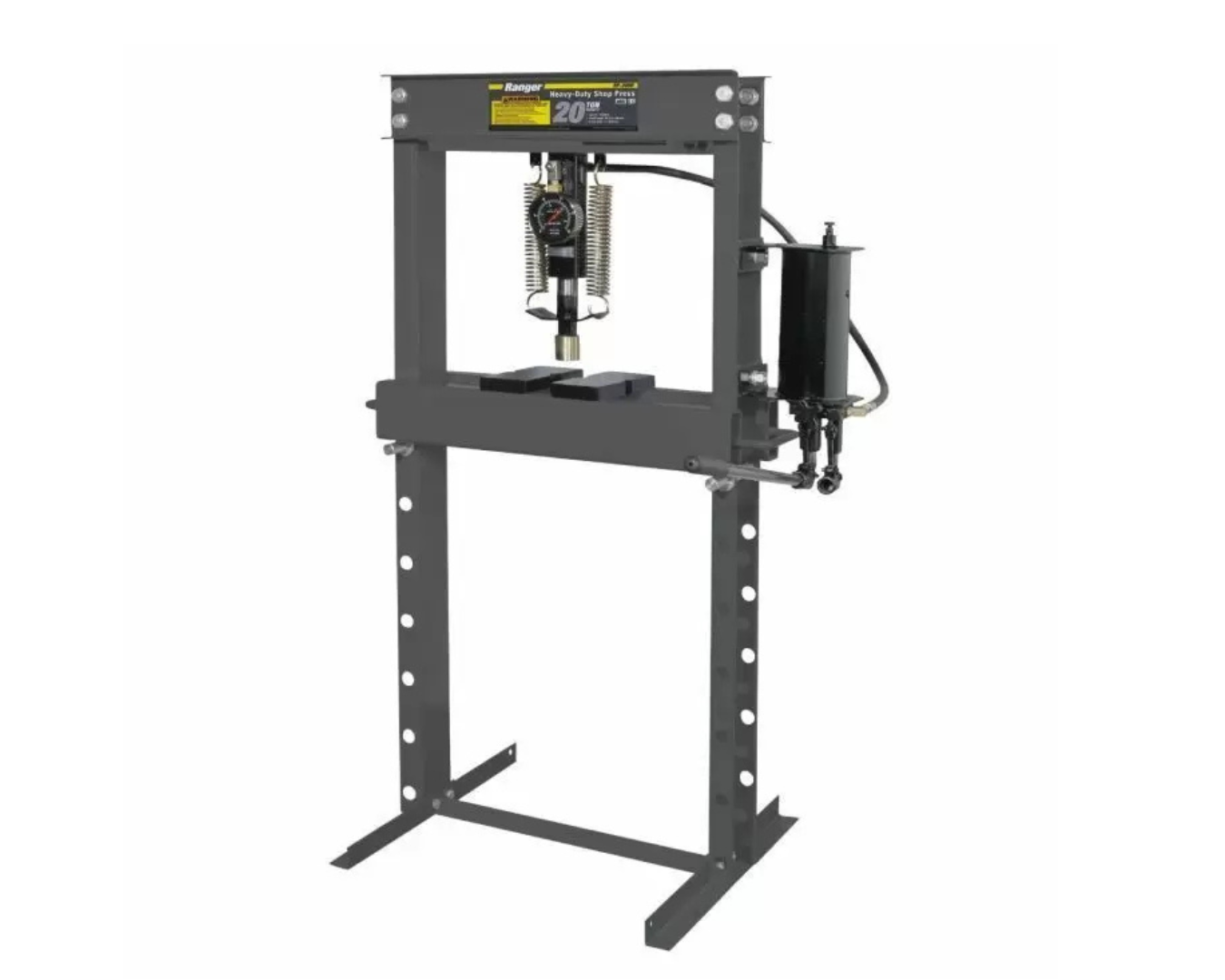

Ranger RP-20HD 20-Ton Shop Press
Ranger RP-20HD 20-Ton Shop Press - Two-Stage Hydraulic Pump - Commercial-Grade
The RP-20HD 20-ton hydraulic shop press is built for heavy-duty use, offering up to 40,000 lbs. of pressure for all your pressing needs. With its two-stage hydraulic pump, it provides exceptional control, power, and accuracy, making it a reliable solution for commercial settings and demanding applications.
Specifications:
-
Brand: RP
-
Model: RP-20HD
-
Pressure Capacity: 40,000 lbs.
-
Hydraulic Pump: Independent two-stage for maximum control and power
-
Pressure Gauge: Integrated 4" diameter 20-ton gauge
-
Construction: Heavy steel H-frame for durability
-
Table: Adjustable height for versatile applications
-
Cylinder: Lateral movement for improved versatility
-
Plates: Includes two heavy-duty arbor plates
