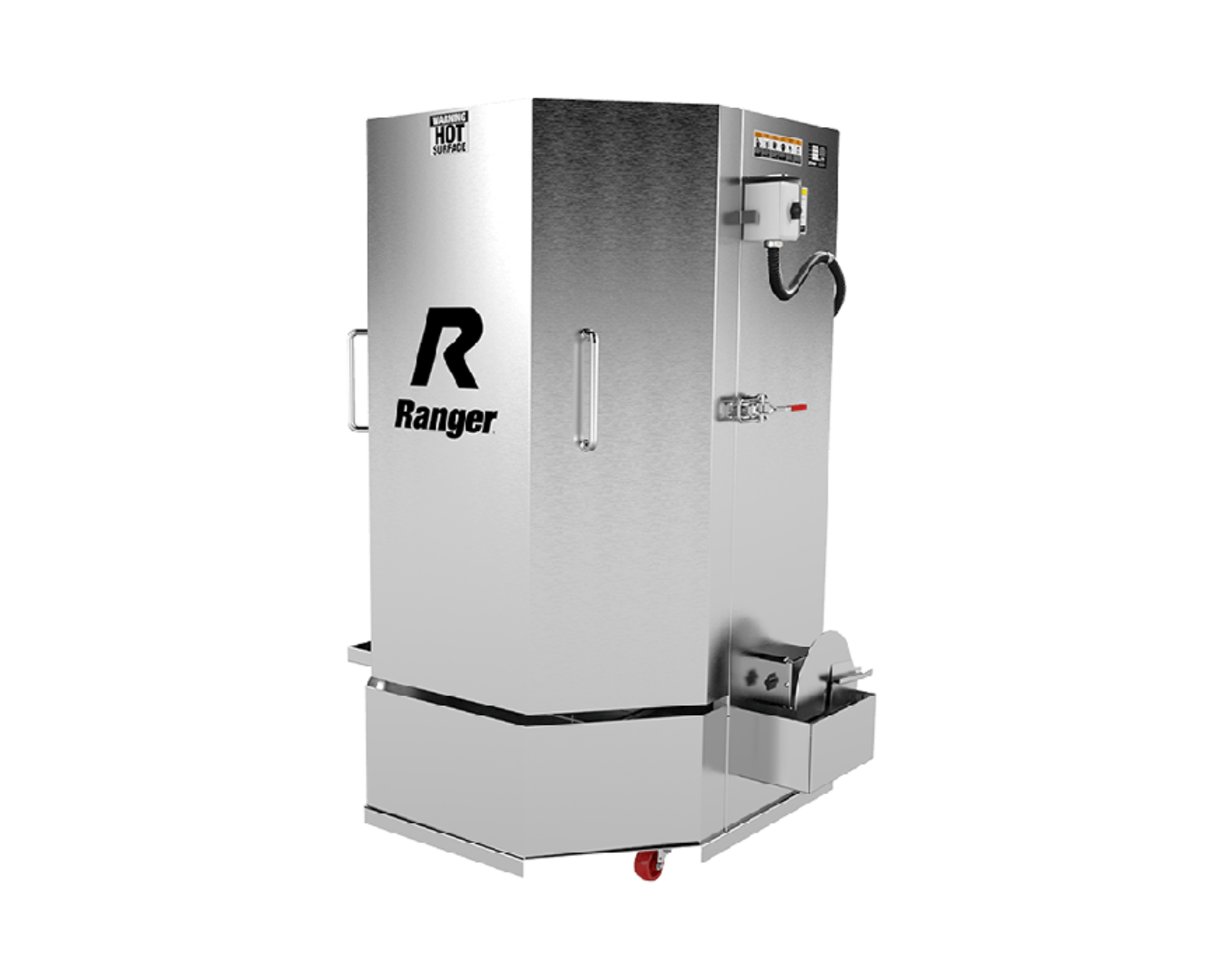

Ranger RS-500DS Stainless Steel Spray Wash Cabinet

The Ranger RS-500DS Stainless Steel Spray Wash Cabinet is a heavy-duty parts washer designed for rapid and thorough degreasing of automotive components. With a 50-gallon capacity and all-stainless steel construction, it resists rust and corrosion while providing powerful, safe, and efficient cleaning. Dual water heaters, multi-directional stainless steel sprayers, and an automatic low-water shutoff ensure consistent performance. The RS-500DS includes several professional-grade features such as a friction-drive turntable, stainless oil skimmer, and contamination-proof cabinet welds, making it a long-lasting and high-performing cleaning solution for professional workshops.

Features:

• Stainless steel construction for rust-free durability

• Safe aqueous cleaning—no harsh chemicals required

• 50-gallon capacity tank for large or small parts

• Dual water heaters for quick temperature rise

• Adjustable thermostat for optimal wash control

• High-power multi-directional spray jets for thorough cleaning

• Automatic low-water shutoff to protect components

• Removable tank screen and small parts basket

• Stainless steel oil skimmer for cleaner solution

• Contamination-proof interior welds for long life

• Friction-drive turntable system for smooth operation

• Neoprene-sealed, gasket-free wash cabinet door

• Fast-release door latch for safe and easy access

• NEMA-rated electrical control panel with alarm system

• Double-pole circuit breaker for heater and motor protection

• Heavy-duty non-marring casters for mobility

• Durable stainless steel nozzles resistant to clogging

• Convenient industrial tank drain for easy maintenance

• Safety switch and timer dial for controlled operation

• Includes free bucket and soap for immediate use

Specifications:

• Overall Height: 66" (1,676 mm)

• Inside Height: 43" (1,092 mm)

• Inside Width: 32" (813 mm)

• Turntable Diameter: 30" (762 mm)

• Tank Capacity: 50 gallons

• Load Capacity: 500 lbs. (227 kg)

• Cycle Timer: 0 - 60 min

• Recommended Floor Space: 44" x 43" (1,118 mm x 1,092 mm)

• Brass Nozzles: 18

• Steel Construction: 12 Gauge / .109 thickness

• Pump Output: 75 psi @ 70 gpm

• Motor: 1 HP / 208-230V / 60 Hz / 1 Ph

• Electric Heater: 6 kW

• Water Temperature: 160° - 180° F (71° - 82° C)

• Shipping Weight: 670 lbs. (304 kg)

• Shipping Dimensions: 46" x 46" x 68" (1,168 mm x 1,168 mm x 1,727 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
