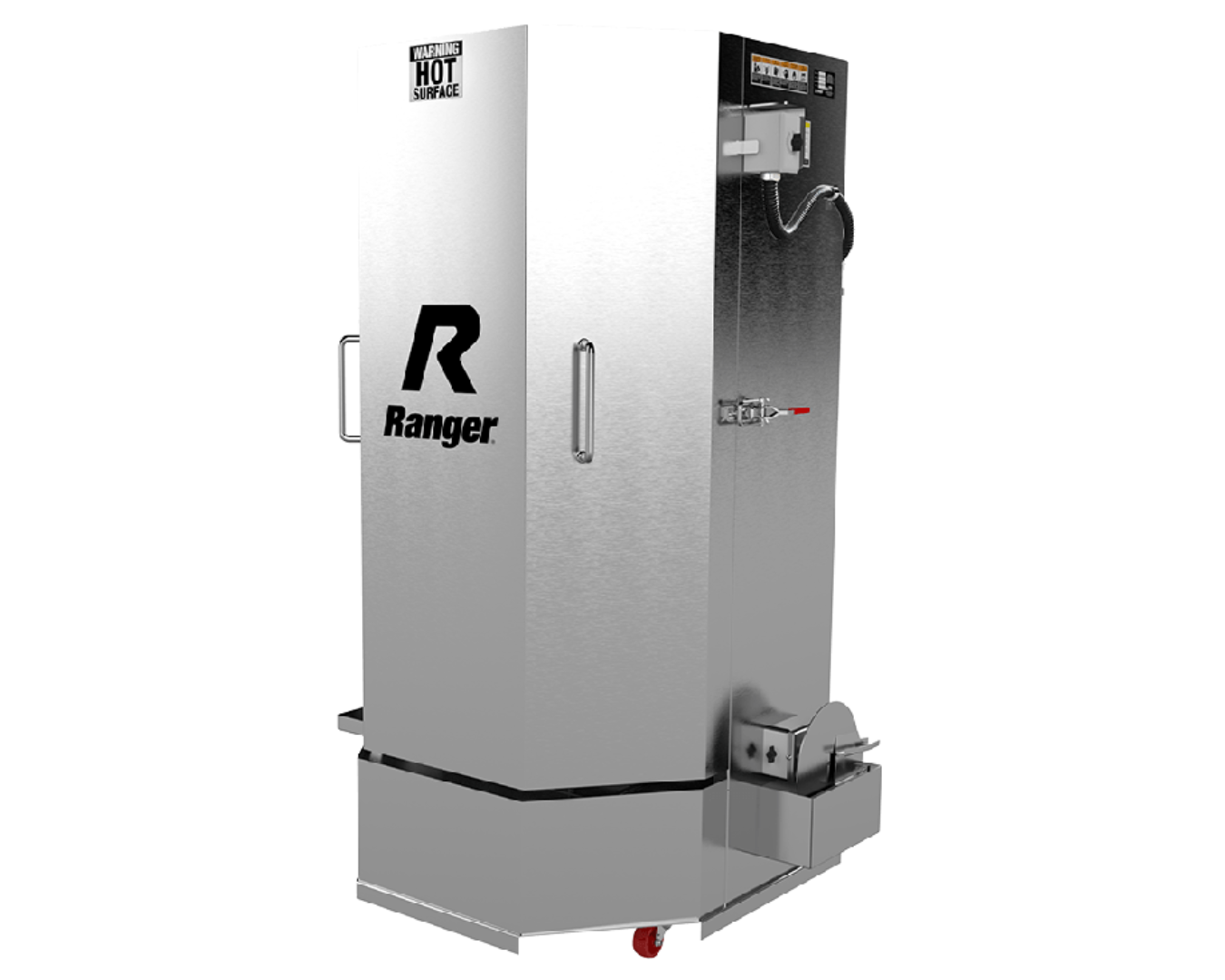

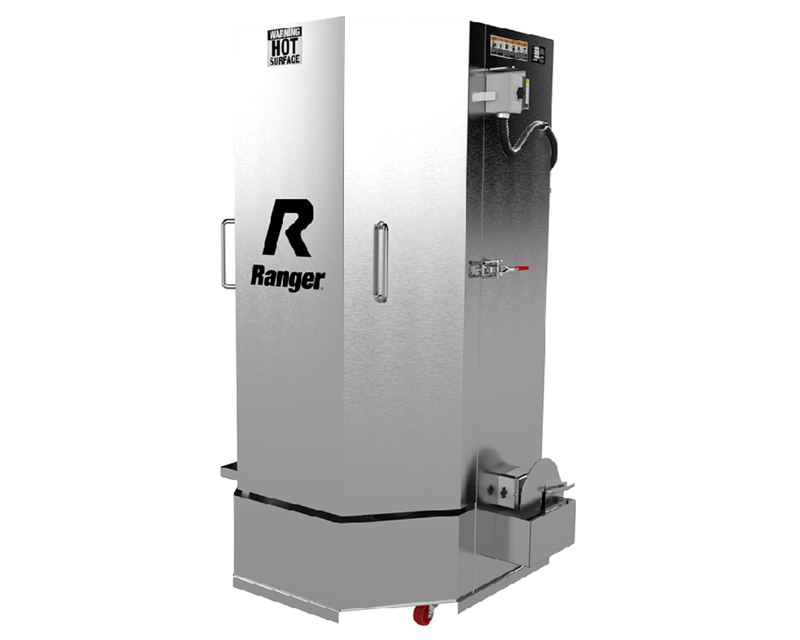

Ranger RS-750DS Stainless Steel Spray Wash Cabinet

The RS-750DS Stainless-Steel Spray Wash Cabinet is a heavy-duty cleaning system built to degrease large and complex automotive parts efficiently. Designed with rust-free stainless steel, it offers long-lasting durability and a 1,000-lb. weight capacity to handle big truck and SUV components. Its dual heaters, NEMA-rated electrical panel, and automatic low-water shutoff ensure top-notch performance and protection. With multiple spray jets, a stainless oil skimmer, and contamination-proof construction, this cabinet guarantees powerful cleaning action while maintaining operational safety. The RS-750DS combines industrial-grade strength with precision engineering, providing a dependable solution for professional-grade automotive maintenance and repair environments.

Features:

• Stainless-steel spray wash cabinet with rust-free construction

• Heavy-duty 1,000-lb. weight capacity for large vehicle parts

• 53-gallon tank for extended washing capability

• Dual water heaters for fast temperature rise and consistent heat

• Automatic low-water shutoff feature for system protection

• Adjustable thermostat up to 175°F for controlled heating

• Multi-directional stainless steel spray nozzles for complete coverage

• Neoprene door seal prevents leaks and retains heat

• Steel oil skimming system keeps detergent and water clean

• Contamination-proof cabinet welds prevent debris entry

• NEMA-rated electrical panel with built-in safety features

• Double-pole circuit breaker for heater and motor protection

• Non-marring casters for smooth mobility without floor damage

• Friction-drive turntable prevents jams and motor wear

• Removable tree rack and parts basket for small components

• Rear-mounted centrifugal pump with stainless impeller

• Industrial casters and drain pipes for easy movement and maintenance

• Hot cleaning system with nickel-based heater element

• Safe aqueous operation – no harsh chemicals required

• Aluma-Klean soap removes oil, grease, and stains effectively

• Includes free bucket and soap with purchase

Specifications:

• Overall Height: 78" (1,981 mm)

• Inside Height: 54" (1,372 mm)

• Inside Width: 32" (813 mm)

• Turntable Diameter: 30" (762 mm)

• Tank Capacity: 53 gallons

• Load Capacity: 1,000 lbs. (454 kg)

• Cycle Timer: 0 - 60 minutes

• Recommended Floor Space: 44" x 43" (1,118 mm x 1,092 mm)

• Brass Nozzles: 22

• Steel Construction: 12 Gauge / .109 thickness

• Pump Output: 70 psi @ 70 gpm

• Motor: 1 HP / 208-230V / 60 Hz / 1 Ph - or - 3 HP / 380-415V / 50 Hz / 3 Ph

• Electric Heater: 6 kW

• Water Temperature: 160° - 180° F (71° - 82° C)

• Shipping Weight: 704 lbs. (319 kg)

• Shipping Dimensions: 46'' x 46'' x 80'' (1,168 mm x 1,168 mm x 2,032 mm)

A $395 surcharge from the freight carrier will be applied if no forklift or loading dock is available at the delivery location.
