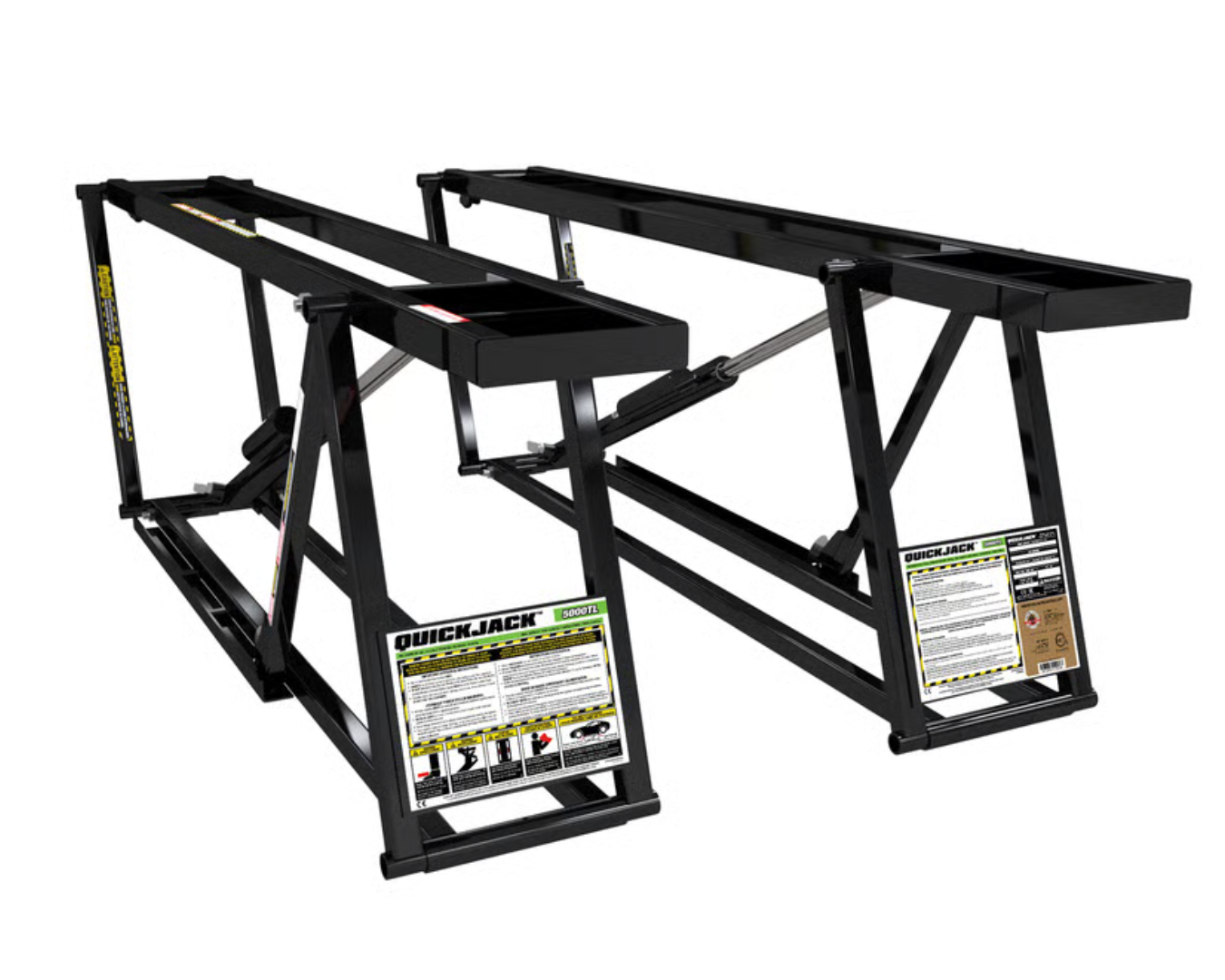

QuickJack 5000TL Standard Frame Portable Car Lift

The 5000TL Portable Car Lift is designed to offer an enhanced lifting height of 24 inches, thanks to a 3-inch increase. This upgrade improves access to the undercarriage of the vehicle and provides greater comfort and capability for all types of vehicle maintenance tasks. The TL model offers a significant height advantage over the SLX model, allowing for more space to perform complex repairs. The overall dimensions of the lift remain consistent, maintaining its super-low 3-inch lowered height. The lift features automatic safety locks at both mid-rise and full-rise, ensuring secure positioning during operation. With one-handed operation and a wide range of accessories to choose from, this lift provides excellent versatility. It also offers easy customization to suit your specific needs, whether for routine maintenance or more involved repairs.

Features:

• Increased Lifting Height: 3-inch enhancement for a total lifting height of 24 inches.

• One-Handed Operation: Easy lifting with no cranking or bending required.

• Automatic Safety Locks: Dual-position locks that engage at mid-rise and full-rise for added security.

• Versatile Accessories: Many different options available to customize the lift for various needs.

• Sold in Sets of Two: Includes both left and right frames.

• Solid-Steel Construction: Durable and built to last.

Specifications:

• Material: Steel

• Assembly Required: Yes

• Portable: Yes

• Rated For Outdoor Use: No

• Dimensions:

  • Height Overall: 20.5 inches

  • Overall Width Max: 11 inches

• Lifting Dimensions:

  • Lifting Height with 2-inch block: 20.75 inches

  • Lifting Height with 3-inch block: 21.75 inches

  • Lifting Height with stacked blocks: 23.75 inches

• Maximum Lift Point Spread: 60 inches

• Minimum Lift Point Spread: 37 inches

• Lifting Capacity: 5000 lbs

• Rise:

  • Time to Full Rise: 26 seconds

• Locking Dimensions:

  • Locking Position Quantity: 2

• Power:

  • Horsepower: 1 HP

  • Voltage: 110V, 50/60Hz, 1PH

  • Amps: 10 A

  • Motor: 110V, 60Hz, 1-Ph.

  • Noise Level: 70 dB

  • Watts: 1100 W

  • Motor RPM: 3450 RPM

• Clearance Dimensions:

  • Lowered Height (Frame Only): 2.75 inches

  • Lowered Height with 2-inch block: 3.38 inches
