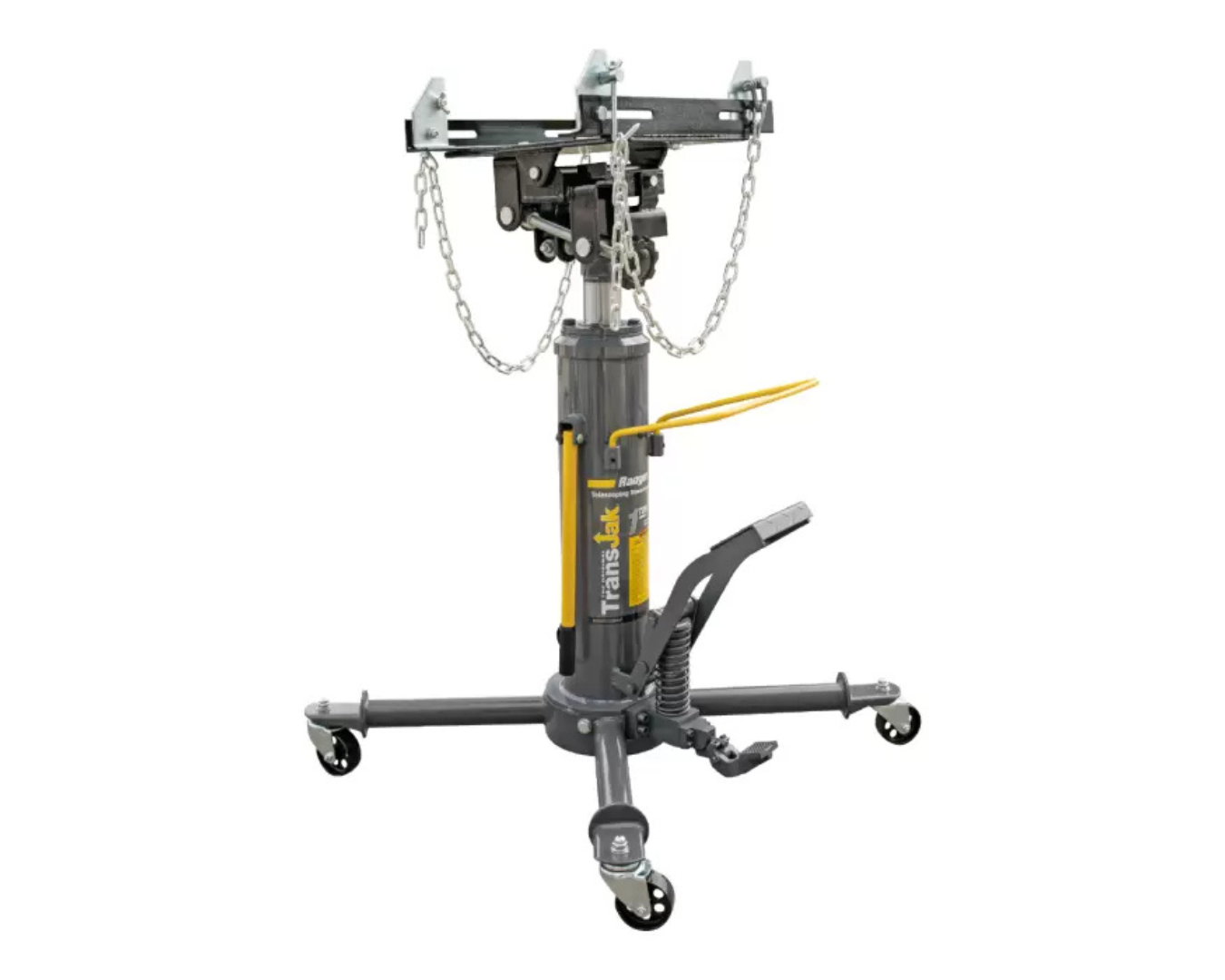

Ranger RTJ-1 TransJak Telescoping Transmission Jack - 1-Ton Capacity

The RTJ-1 TransJak transmission jack is designed to handle heavy lifting with a 1-ton capacity and is made of over 200 pounds of high-quality material. This telescoping jack has been an industry favorite, combining versatility and durability for transmission service tasks. Its robust construction and user-friendly design have made it a top choice for professional auto shops. With a fully adjustable saddle and a heavy-duty chain anchor system, the RTJ-1 ensures secure handling of transmissions, transaxles, and other drive-train components.

Features:

• Lifting Capacity: 1-ton

• Max Rise: 71 inches, ideal for full-sized car lifts

• Saddle Design: Fully adjustable and slides in four directions

• Pump Mechanism: Foot-operated, two-stage pump

• Heavy-duty Construction: Steel body with double-sealed hydraulics

• Overload Protection: Prevents use beyond rated capacity

• Ease of Use: Ergonomically designed foot-pedal and two individual push/pull handles

• Safety Features: Heavy-duty chain anchors and overload system for secure lifting

• Maneuverability: Extra-wide base with four swivel ball bearing casters

• Compatibility: Adapts to passenger car and light truck automatic transmissions

Specifications:

• Hydraulic System: Double-sealed hydraulics for longer service life

• Material: Heavy steel construction for maximum durability

• Adjustment Mechanism: Fine-thread screws with oversized knobs for easy adjustments

• Dimensions: Adjustable saddle for a range of vehicles

• Construction: Hardened chrome-moly ram to prevent rust

• Lifting Capacity – 1st Stage: 2,000 lbs. (907 kg)

• Lifting Capacity – 2nd Stage: 1,000 lbs. (454 kg)

• Lowered Height: 37" (940 mm)

• Raised Height: 73" (1,854 mm)

• Base Dimensions: 39" x 39" (991 mm x 991 mm)

• Shipping Weight: 188 lbs. (85 kg)

• Shipping Dimensions: 23" x 15" x 33" (597 mm x 381 mm x 838 mm)
