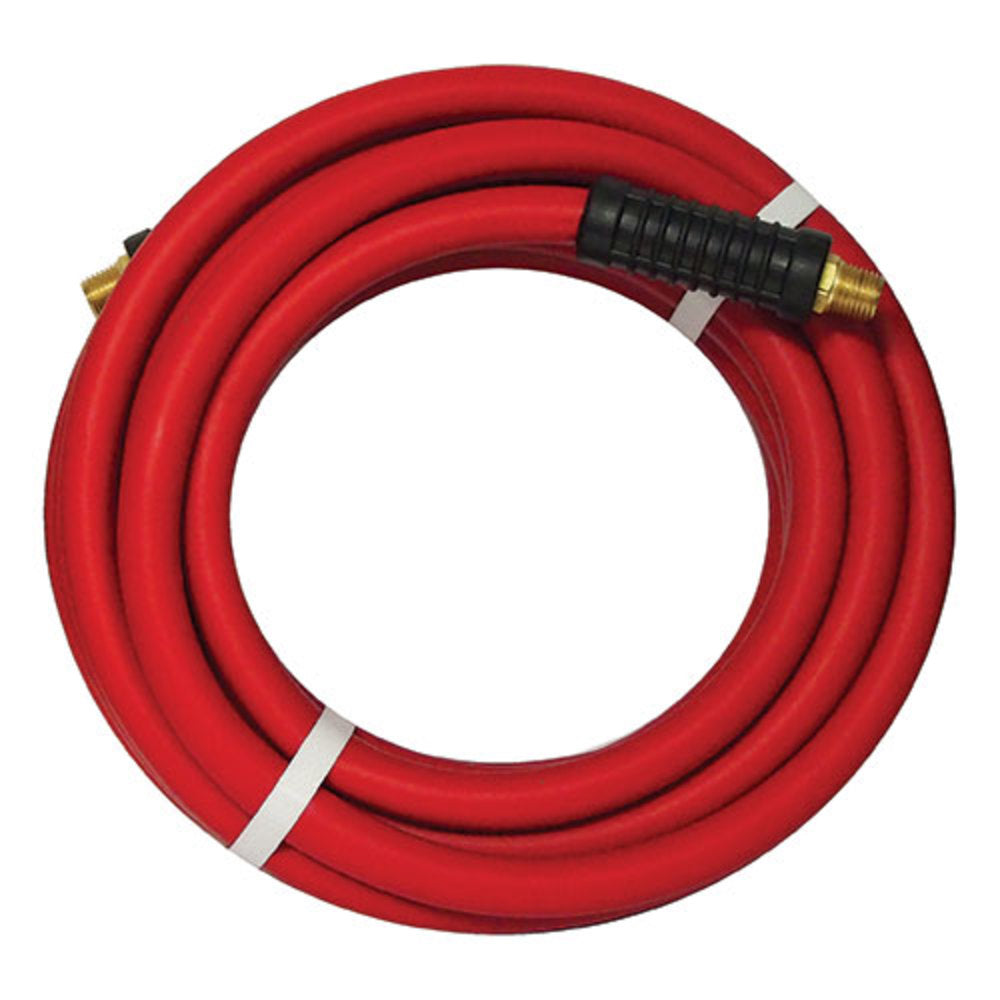

UltraFlex Air Hose 3/8 Inch x 25 Feet

The UltraFlex Air Hose is a durable, weather-resistant, and lightweight solution for a variety of pneumatic applications. Manufactured from a specially formulated compound of high-grade PVC resin, this hose is engineered to be tough, flexible, and easy to handle, making it an ideal choice for use in cold weather air tool applications.

Features

• Multi-purpose

• Excellent abrasion resistance

• Avoids permanent deformation caused by hose stress

• Medium Class B oil resistance

• Non-marking pin-pricked cover

• Silicone-free

• RoHS compliant

Applications:

• Ideal for pneumatic hand tool and shop air applications due to its light weight and relatively high pressure rating.

Technical Data & Physical Properties:

• 1/4 inch Hose:

  • Nominal ID: 0.25 in (6.5 mm)

  • Nominal OD: 0.500 in (12.7 mm)

  • Max. Working Pressure: 300 PSI @ 70°F (20°C)

  • Approx. Weight (25 ft.): 2 lbs.

• 3/8 inch Hose:

  • Nominal ID: 0.375 in (9.5 mm)

  • Nominal OD: 0.625 in (15.9 mm)

  • Max. Working Pressure: 300 PSI @ 70°F (20°C)

  • Approx. Weight (25 ft.): 2.5 lbs.

• 1/2 inch Hose:

  • Nominal ID: 0.5 in (12.7 mm)

  • Nominal OD: 0.781 in (19.8 mm)

  • Max. Working Pressure: 300 PSI @ 70°F (20°C)

  • Approx. Weight (25 ft.): 3.75 lbs.

• All sizes have a maximum working pressure of 160 PSI at 122°F (50°C).

• Tube and Cover: High grade low temperature PVC Compound

• Reinforcement: High tensile strength polyester yarn

• Service Temperature: -40°F (-40°C) to + 150°F (+65°C)

• Packaging: Individually shrink-wrapped assemblies
